WisNode Button 4K

Product Description

The WisNode Button is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN 1.0.2 protocol. Supported LoRaWAN bands are IN865, EU868, AU915, US915, KR920, and AS923.

The Button is suitable for a variety of Smart Home applications: Entertainment system control, Control of Lights, as a Snooze Button for your Alarms, or a remote trigger. With long-range wireless connectivity, amazing battery life, and four programmable buttons, there are a ton of applications this device can fit into.

Product Features

• 4 Buttons with LED indicator
• LoRaWAN® 1.0.2 compatible
• Battery: 350 mAh
• Battery working time: 1 year (Rechargeable)
• Power Consumption: Transmit: 77.4-153* mA, Standby: 4.8 uA
• Working Environment: Indoor
• Product Size: 43x57x15 mm
• Operating Temperature: -20º C to 60º C

*transmit current depends on factors such as transmit power, SF, and Payload Length

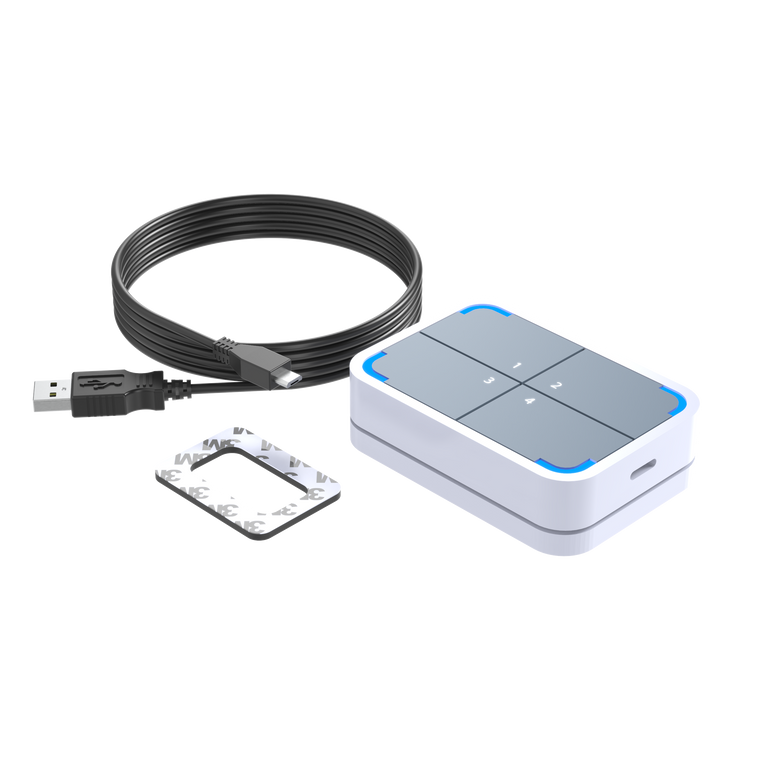

Product Inclusions

• 1pc RAK7201-4 Key Button
• 1pc Micro USB Cable
• 1pc Double-sided adhesive Sticker
