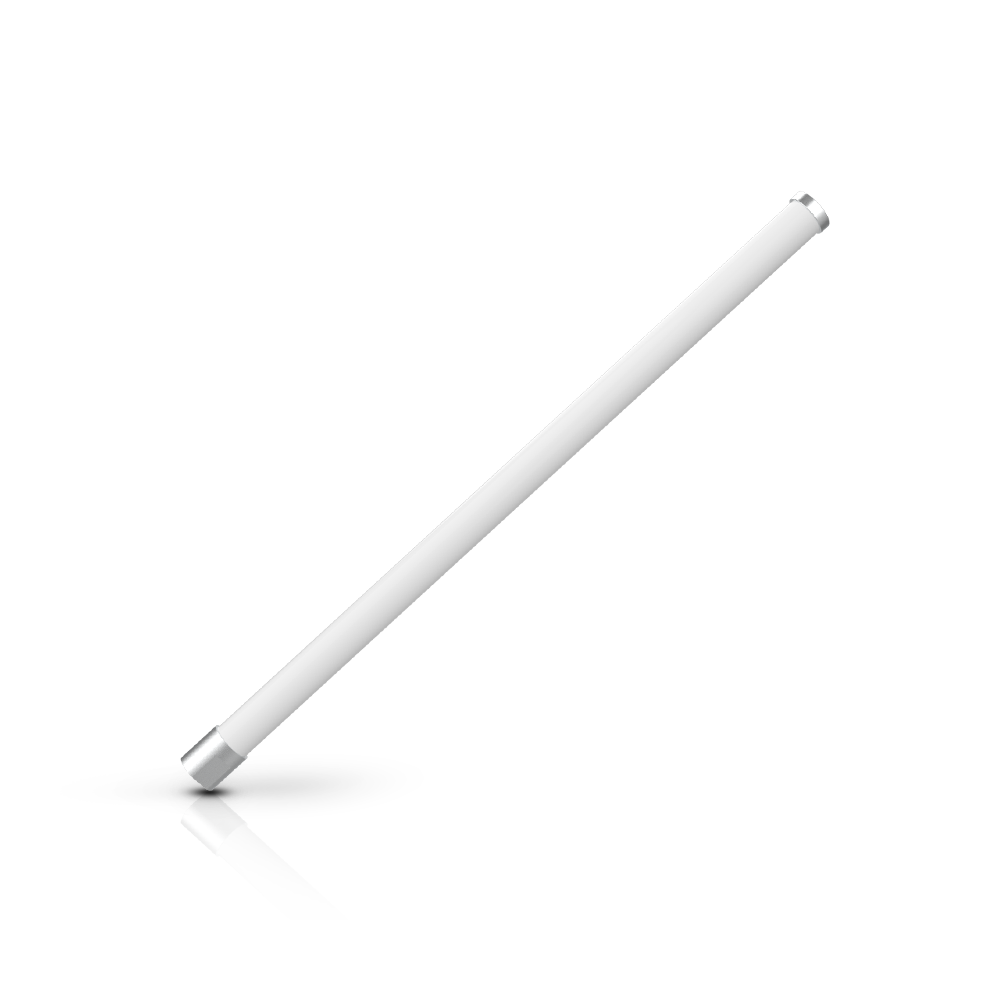

5dBi Fiberglass Antenna 902-928MHz

RAK’s 5 dBi fiberglass antenna is an outdoor, high-performance antenna, designed to withstand harsh outdoor conditions. It is specially designed for LoRa® in the 902-928MHz band – US915, AU915, AS923, and KR920.

The antenna connector is one with the antenna body - this design further increases the resistance of the antenna to external conditions.

With a length of only 480 mm, this antenna will be the best fit for your LPWAN Gateway or outdoor deployed RAK Hotspot Miner.

Product Features

• Frequency: 902-928MHz
• Gain: 5.0dBi
• VSWR: ≤1.47
• Beamwidth: 360 degrees
• Impedance: 50 Ohms
• Polarization: Vertical
• Radome Body: Fiberglass
• Connector: N-Type Male
• Dimensions: Փ 27.0 mm x 480.0 mm
• Operation Temperature: -40°C~+75°C
• Storage Temperature: -40°C~+85°C
• IP67 rated
