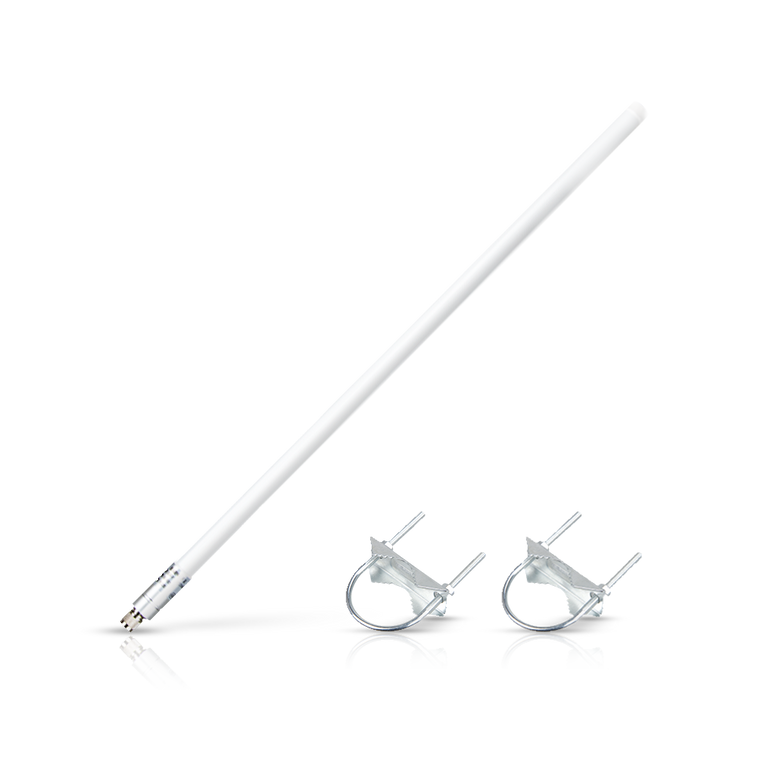

8dBi Fiberglass Antenna 858-878MHz

Regular price $78.00 USD
Regular price Sale price $78.00 USD
Sale Sold out
Connector Type

Product Description

The second generation of RAK antennas for LoRa® incorporates high-performance omnidirectional elements that support ultra-high frequency (UHF) LoRa® bands (IN865, EU868, RU864).

Product Notice:

  • This antenna is too long to be attached directly to your gateway. To avoid damaging your gateway connector especially in windy season, we recommend using a feeder line cable and secure the antenna with brackets.
  • This antenna cannot be used for the EU433 and CN470 frequencies.

Shipping notice: Due to the length of the antenna, the shipping cost will be 50USD.

Connector Options

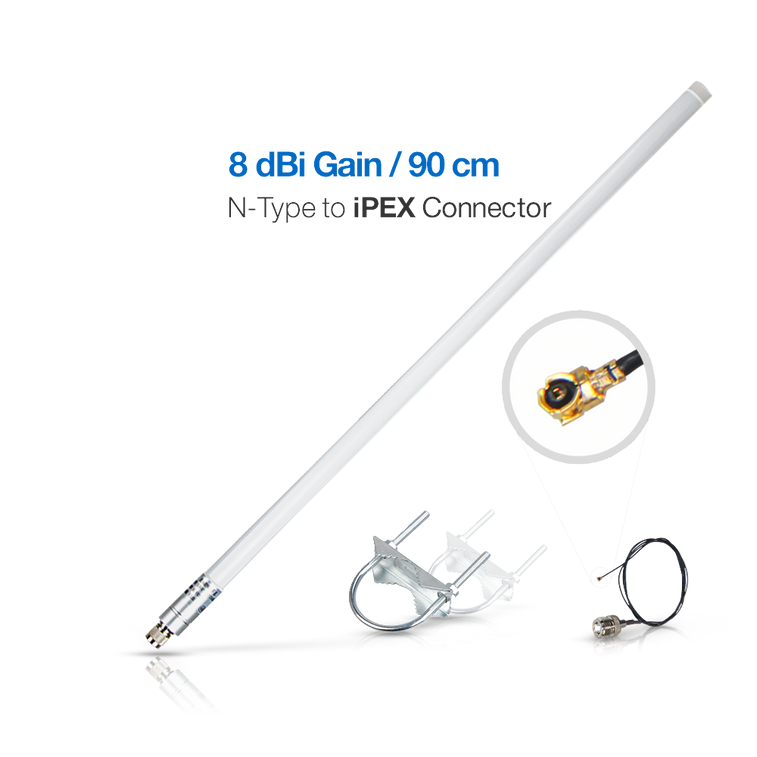

  • IPEX: Small connector found on our concentrator cards like the RAK2287

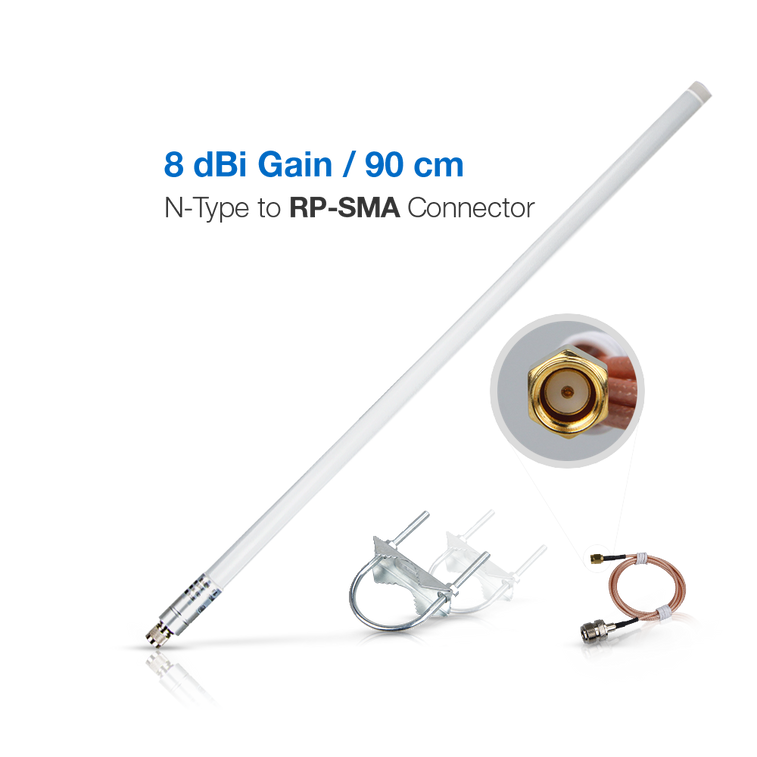

  • RP-SMA: Connector found on our commercial and developer gateways, RAK Hotspot V2 and Helium™ Hotspot

Key Features

  • Frequency: 858-878MHz
  • Gain: 8.0 dBi (±1dBi)
  • VSWR: ≤1.5
  • Beamwidth: 360 degrees
  • Impedance: 50 Ohms
  • Polarization: Vertical
  • Radome Body: Fiberglass
  • Connector: N-Type Male
  • Bracket Inclusion: 2pcs brackets
  • Dimensions: 1300 ± 25mm
  • Operation Temperature: -30°C~65°C
  • Storage Temperature: -30°C~75°C

    Product Inclusion

    • 1pc Antenna
    • 1pc Pigtail interface converter
    • 2pcs Mounting Brackets


      Notice: The included antenna connector is RP-SMA male and it is fully compatible with RAK's WisGate Developer Gateways and Hotspot V2. For compatibility with other devices
