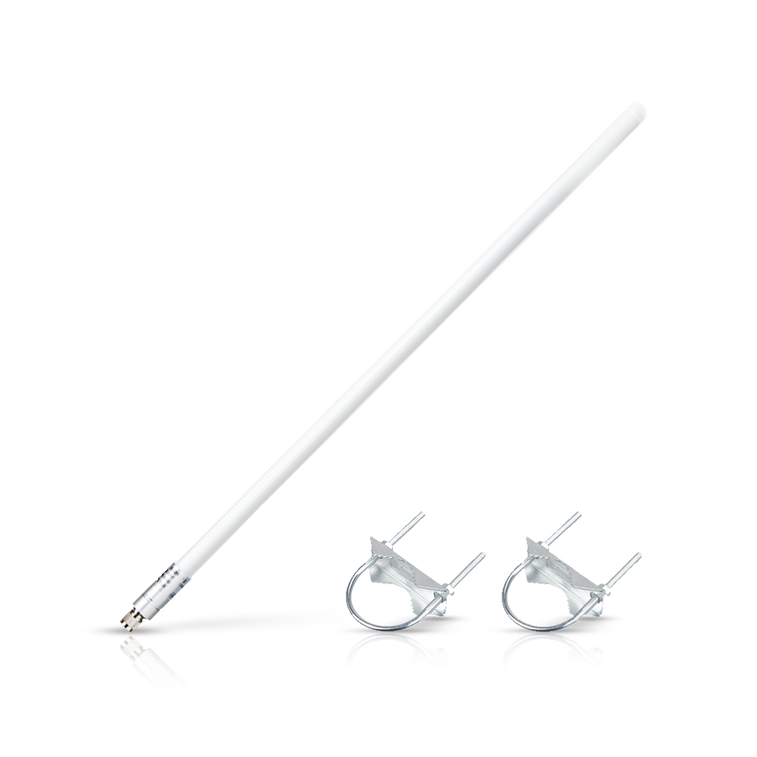

8dBi Fiberglass Antenna 900-930MHz

Precio habitual $78.00 USD
Precio habitual Precio de oferta $78.00 USD
Oferta Agotado
Connector Type

Product Description

The second generation of RAK antennas for LoRa® incorporate high-performance omni-directional elements which support ultra high frequency (UHF) LoRa® bands (US915, AU915, KR920, and AS923).

Product Notice:

  • This antenna is too long to be attached directly to your gateway. To avoid damaging your gateway connector especially in windy season, we recommend using a feeder line cable and secure the antenna with brackets.
  • This antenna cannot be used for the EU433 and CN470 frequencies.

Connector Options

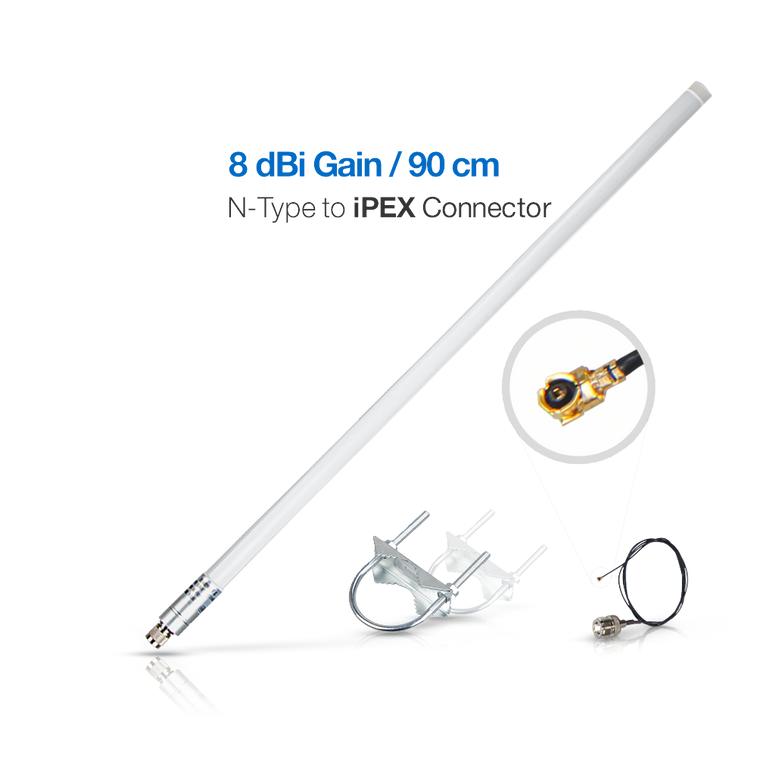

  • IPEX: Small connector found on our concentrator cards like the RAK2287

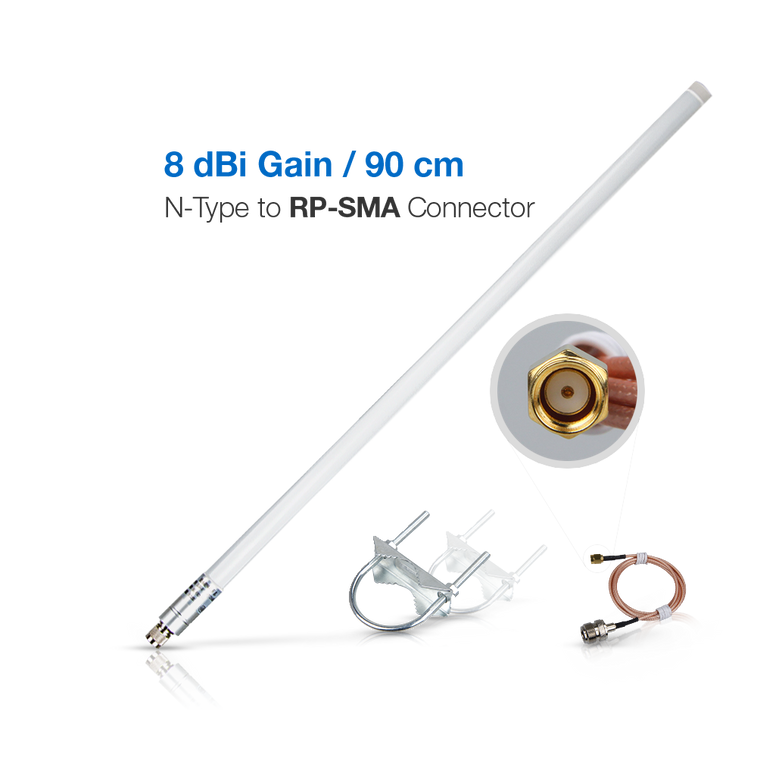

  • RP-SMA: Connector found on our commercial and developer gateways, RAK Hotspot V2 and Helium™ Hotspot

    Product Features

    • Frequency: 900-930MHz
    • Gain: 8.0dBi
    • VSWR: ≤1.5
    • Beamwidth: 360 degrees
    • Impedance: 50 Ohms
    • Polarization: Vertical
    • Radome Body: Fiberglass
    • Connector: N-Type Male
    • Bracket Inclusion: 2pcs brackets
    • Dimensions: 900 ± 20mm
    • Operation Temperature: -30°C~65°C
    • Storage Temperature: -30°C~75°C

    Package inclusion

    • 1x Antenna
    • 1x Pigtail interface converter
    • 2x Mounting brackets


    Notice: The included antenna connector is RP-SMA male and it is fully compatible with RAK's WisGate Developer Gateways and Hotspot V2. For compatibility with other devices
