8dBi Fiberglass Antenna Bundle

$156.00 USD
$156.00 USD
Oferta Agotado
Variants
Connector Type
Frequency

Product Description

This bundle consists of 8dBi fiberglass antennas and an Antenna magnetic base for LoRa®.

To choose the appropriate antenna with regards to the LoRa frequency of your region, please refer to the TTN's guide, and/or the Regional Parameters Documentation provided by the LoRa Alliance.

Product Notice:

  • The antenna magnetic base is not suitable for mounting outside. This is due to the fact that it is not water-tight and high moisture levels would eventually damage it and result in an inoperable installation. RAKwireless recommends only using it in indoor conditions away from wet environments.
  • This antenna cannot be used for the EU433 and CN470 frequencies.

Connector Options

  • IPEX: Small connector found on our concentrator cards like the RAK2287
  • RP-SMA: Connector found on our commercial and developer gateways, RAK Hotspot V2 and Helium™ Hotspot

    Product Features

    Frequency 858-878MHz 900-930MHz
    Gain 8.0 dBi (±1dBi) 8.0 dBi
    VSWR ≤1.5 ≤1.5
    Beamwidth 360 degrees 360 degrees
    Impedance 50 Ohms 50 Ohms
    Polarization Vertical Vertical
    Radome Body Fiberglass Fiberglass
    Connector Type N-Type Male N-Type Male
    Antenna Dimensions 1300 ± 15mm 900 ± 25mm
    Operation Temperature -30°C~65°C -30°C~65°C
    Storage Temperatures -30°C~75°C -30°C~75°C

    Package inclusion

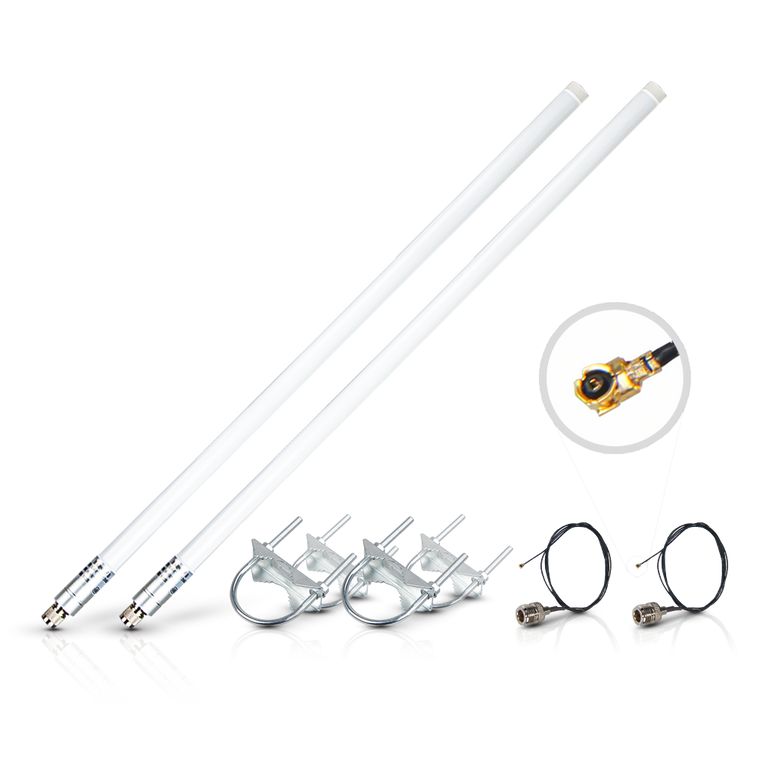

    Bundle 1

    • 2pcs Antenna
    • 2pcs Pigtail interface converter
    • 4pcs Mounting Brackets

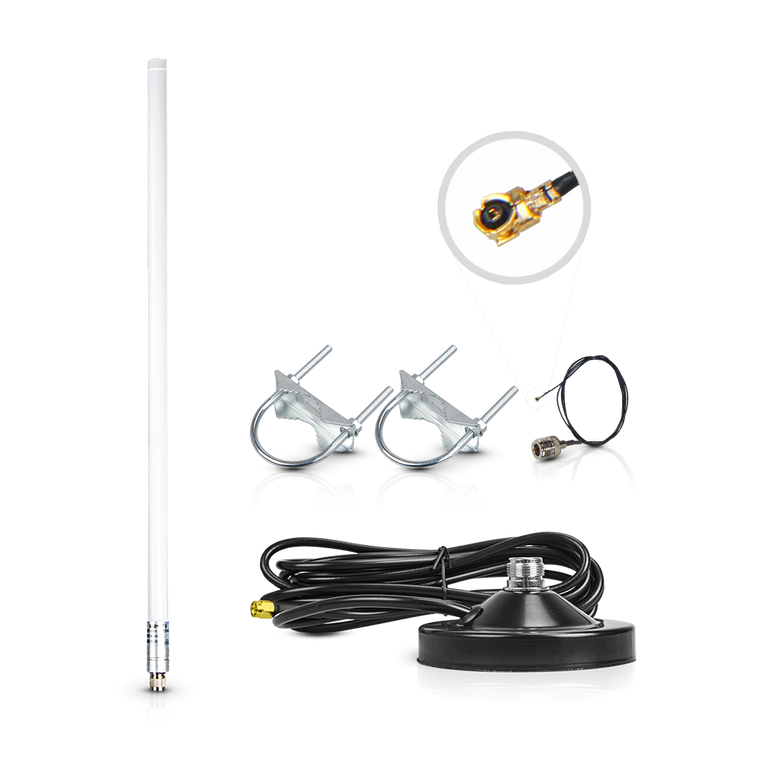

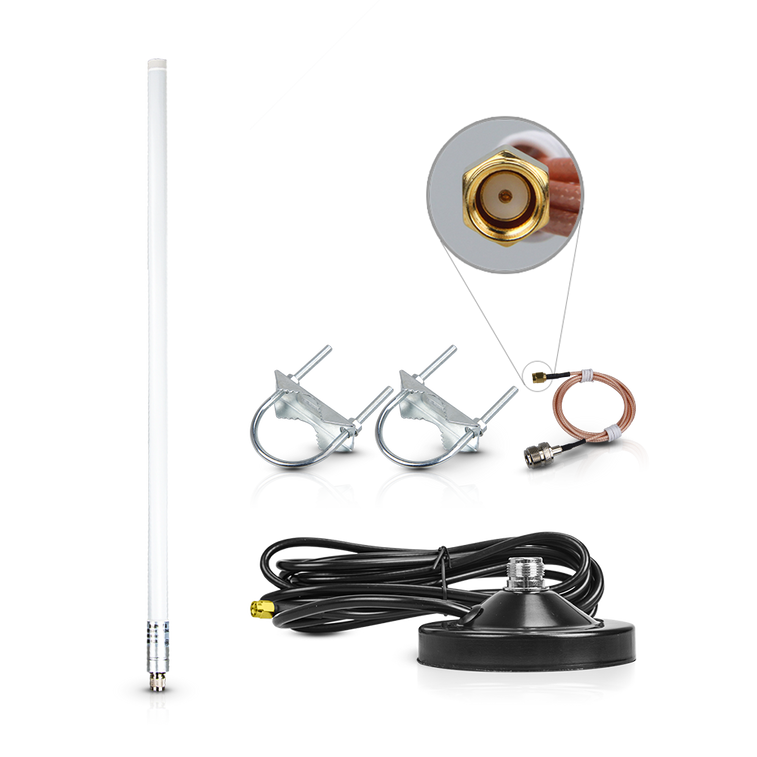

      Bundle 2

      • 1pc Antenna
      • 1pc Antenna Magnetic Base
      • 1pc Pigtail interface converter
      • 2pc Mounting Brackets

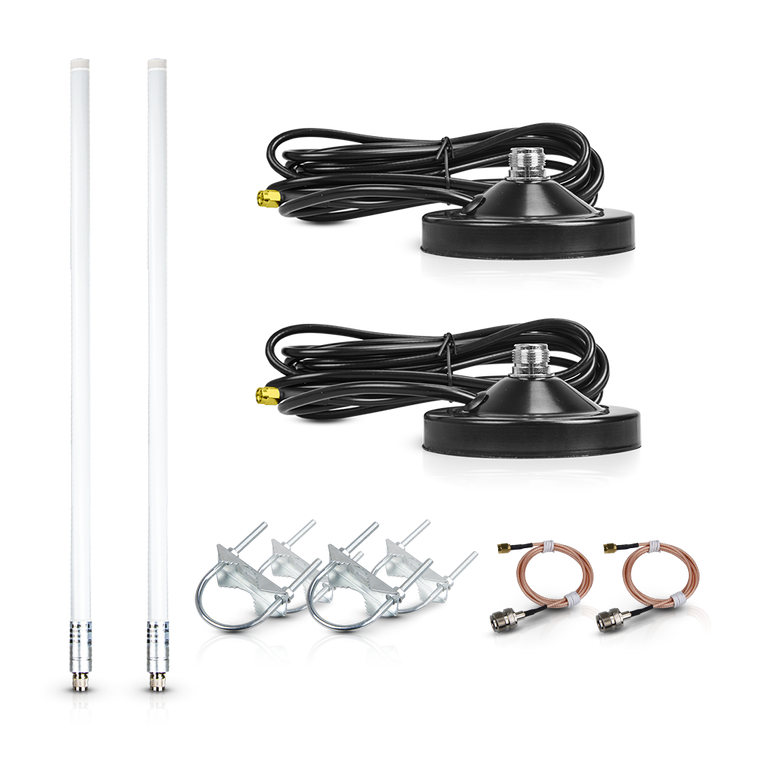

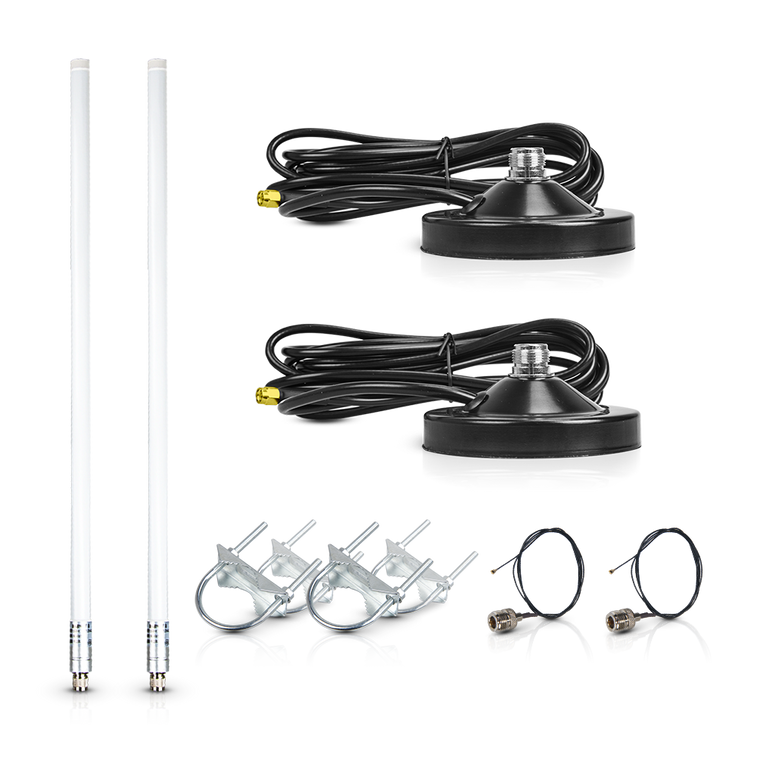

      Bundle 3

      • 2pcs Antenna
      • 2pcs Antenna Magnetic Base
      • 2pcs Pigtail interface converter
      • 4pcs Mounting Brackets



      Note: The included antenna connector is RP-SMA male and it is fully compatible with RAK's WisGate Developer Gateways and Hotspot V2. For compatibility with other devices
